ALUecofix M 45x23mm blank 4m

terraces substructure, high load capacity, weatherability

€8.54*/ Laufender Meter

€34.18* per packagaging unit

Product number: 90201076

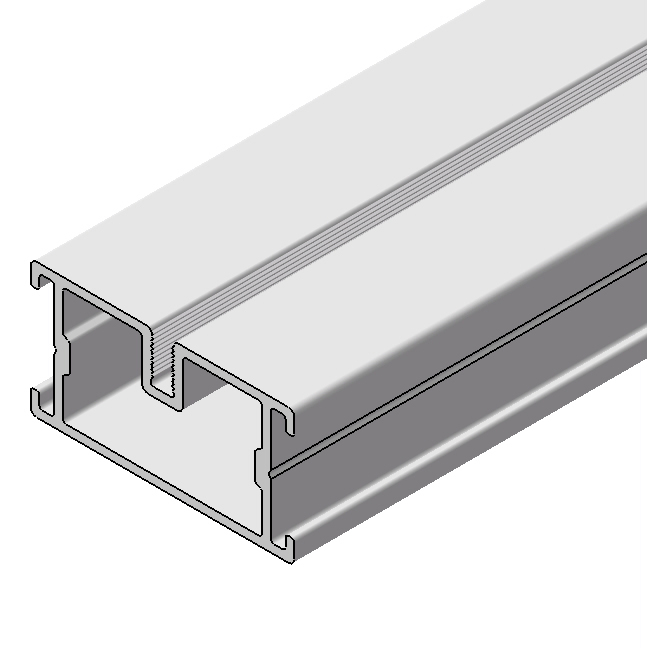

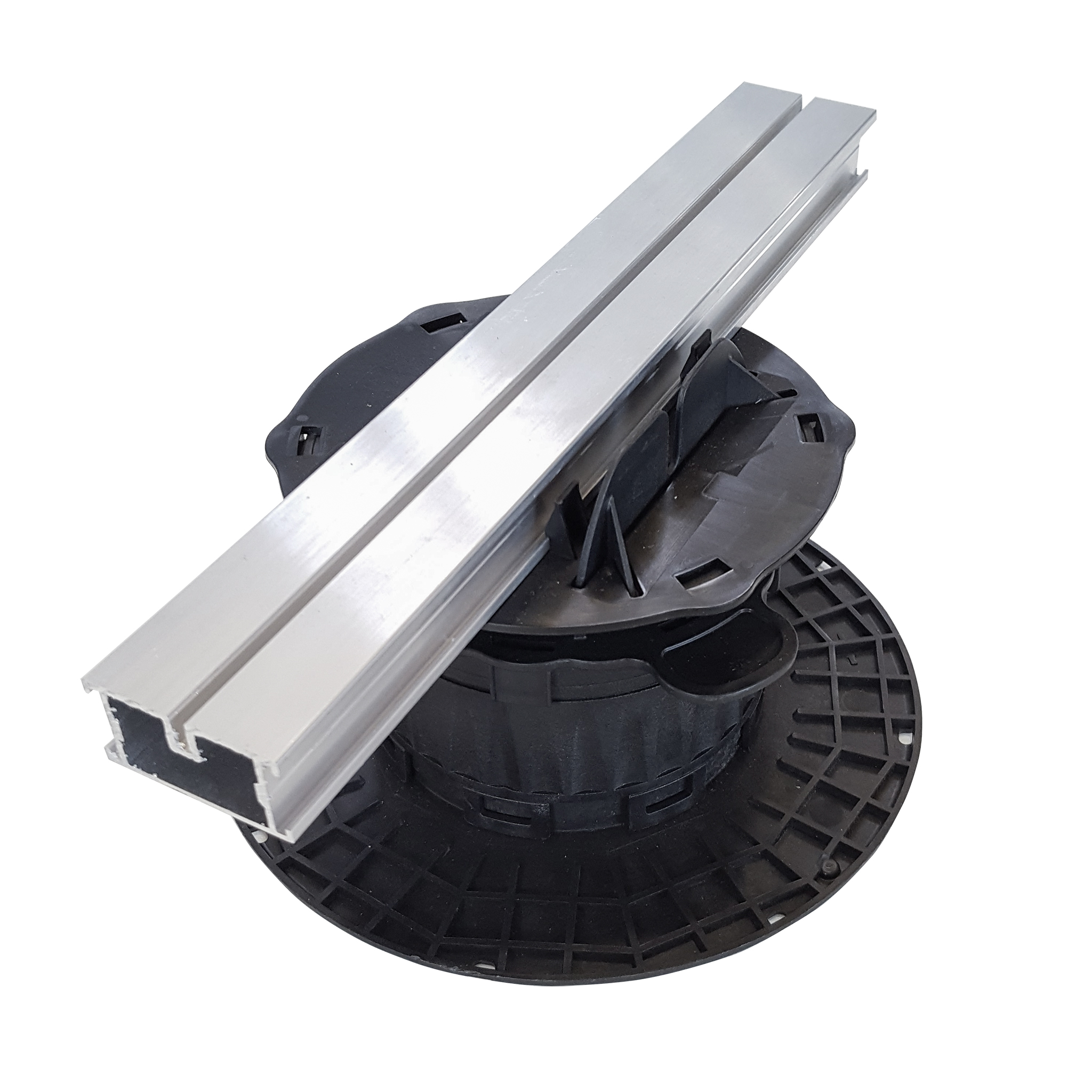

ALUecofix aluminum profile - the terrace substructure for laying wooden and WPC planks


The aluminum profile is used instead of wood or WPC as a supporting profile in the substructure. It can be used multifunctional for all terrace coverings made of wood, WPC, stone or ceramic (also in the mix). The two variants M (45 x 23 mm) and L 45 x 38 mm) can be coupled with each other on both sides with screw channel or smooth surface.
Due to the system angle, simple T-connections are possible for a fixed bracing. The aluminum profile is characterized by a high load capacity and dimensional stability.
It is permanently weather-resistant, straight and without wounds - no swelling and shrinking.

Product features:
  • TOP statics and quality

  • very low weight

  • 2 Variants: 45 x 23 mm (M) & 45 x 38 mm (L) - usable on both sides with screw channel or smooth surface

  • The profiles 45 x 23 mm (M) & 45 x 38 mm (L) can be coupled together

  • System angles allow easy T-connections for a fixed bracing

  • Plate holders offer the possibility to put weight plates into the system, e.g. to secure suction in roof terraces - at the same time this holder is usable as a ground anchor, if the UK is to be screwed tightly

  • Thanks to the integrated screw channel, you can fasten the planks easily and simply without pre-drilling with an M 4 threaded screw or our aluminum self-drilling screw





  • Product number: 90201076
    EAN: 4251236416790
    Weight in kg: 2.4
    Height in mm: 23.0
    Length in mm: 4000
    Width in mm: 45

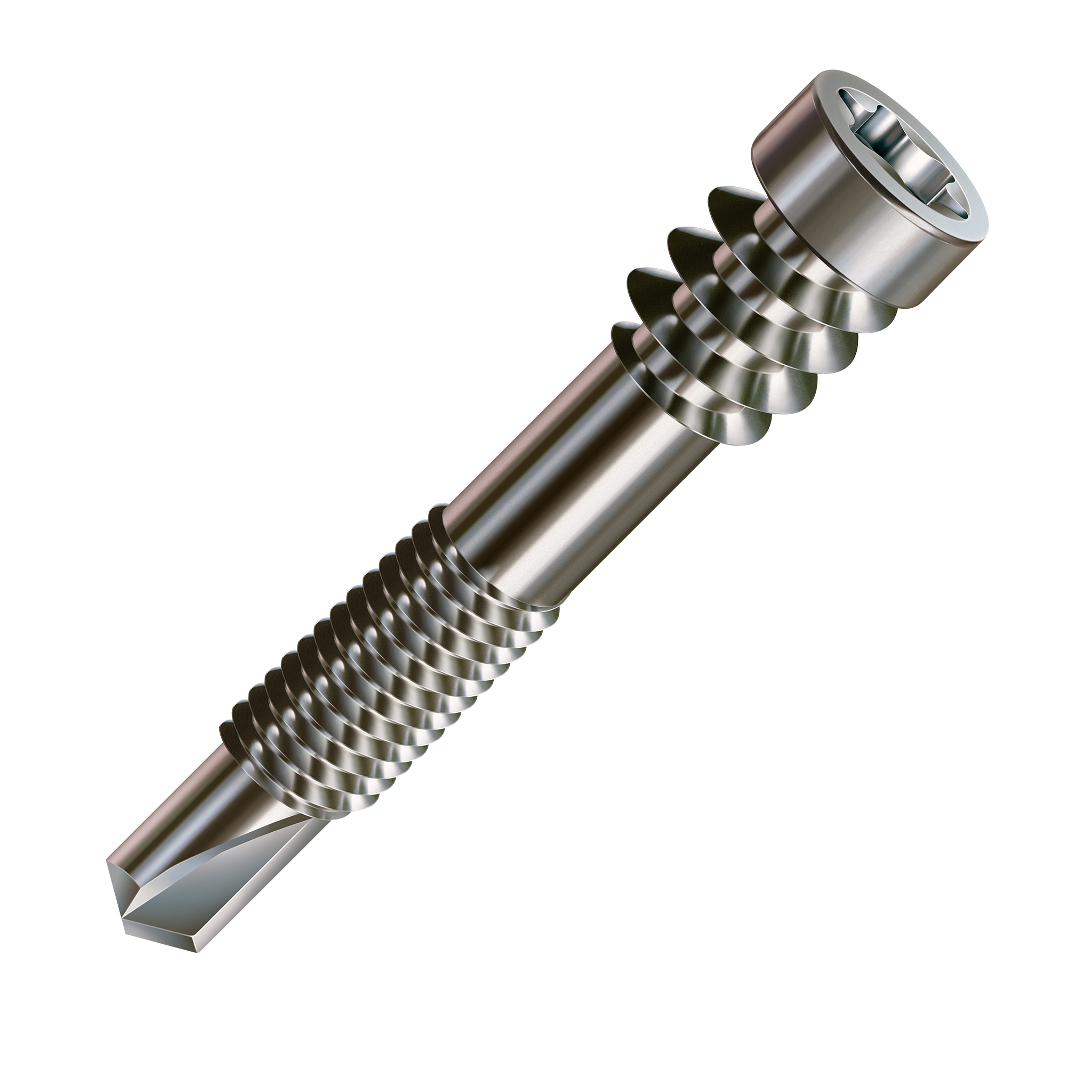

    SPAX Terrasse screw A2 Plus 5x44mm
    (100 Stück/Pack) for alu substructure, drill bit, Fixing thread

    Content: 1 Pack

    €23.47*/ Pack

    €23.47* per packagaging unit

    ALUecofix M Connection angle 16mm
    with bore, including screws, 8 pieces/pack

    Content: 1 Stück

    €2.94*/ Stück

    €2.94* per packagaging unit

    ALUecofix connector profile
    for 45x23mm and 45x38mm, for ALUecofix profiles M and L

    Content: 1 Stück

    €2.94*/ Stück

    €2.94* per packagaging unit

    Wood is a natural product, variations in color and structure are inevitable and properties of the natural product wood. A sample therefore does not have to match the later delivery and therefore cannot convey the overall impression of a laid area. The same applies to the illustrations on this website / web shop, these are also to be equated with the representation of a sample.
